Patented Low-Contact Modular Cutting Table System

LASER MARKING IRREGULAR SHAPED PRODUCTS USED TO BE A CHALLENGE... NOT NOW!

In an industry built on precision, there have been few options for the laser operator to have greater control, accuracy, speed, flexibility, and an increase in production - until now!

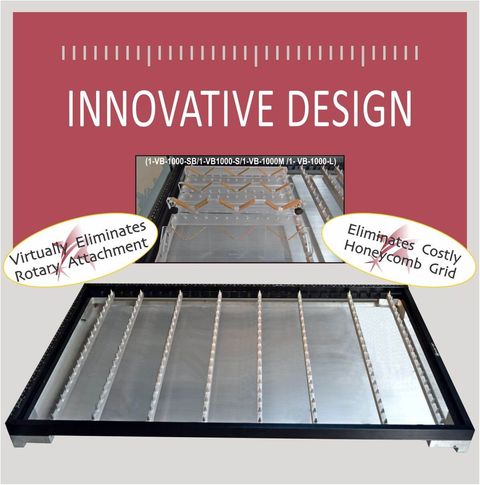

Unlike typical honeycomb grid, the RACK STAR™ Low-Contact Modular Cutting Table System fills the void to create a truly modular designed laser cutting table system made of precision-machined high-grade aluminum. Unlike the honeycomb table, RACK STAR™ will never need replacing and is manufactured and assembled in the USA!
U.S. Patent No. 9,902019

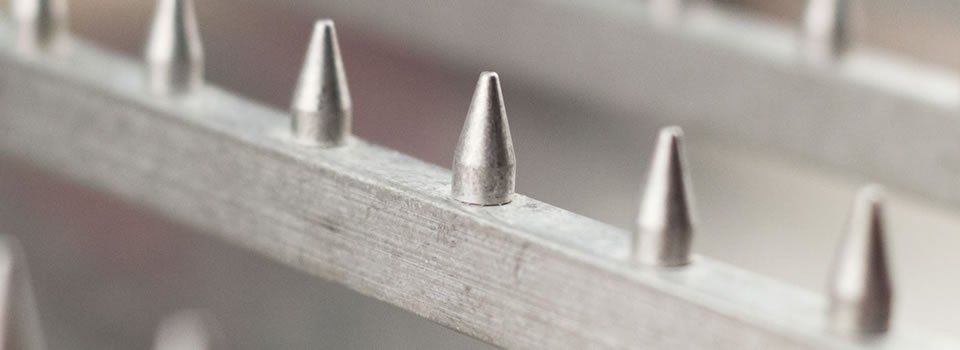

A unique fixture rail system that incorporates an equally-spaced, cone-shaped pin design along the entire rail. This minimizes contact with the material and eliminates tick marks. The cone-shaped pin design virtually defuses the laser beam to eliminate flashbacks.

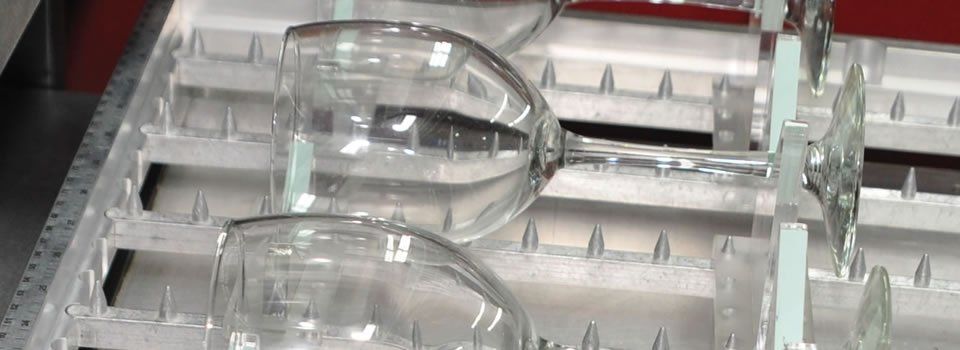

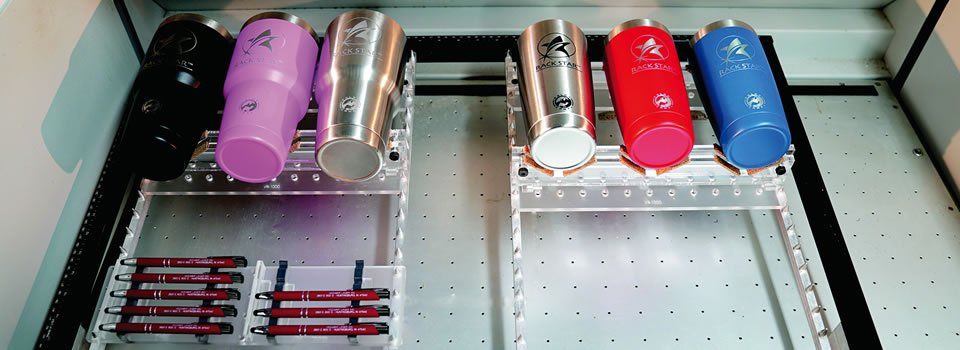

The uniform spacing of aluminum cone-shaped pins allows for flexibility of rotating Acrylic Risers, Acrylic V-Blocks, and custom fixtures, etc. These items are aligned vertically or horizontally to maximize engraving speed, and have increased production rates that are nearly 4 times greater when compared to workflows without the RACK STAR™ System. In addition, RACK STAR™ reduces setup time and eliminates costly manufacturing errors.
/// Virtually Eliminates Rotary Attachment ... Saving you $1,000 - $1800 (size) – with use of our V-Block Technology™ & increases your production by 3-400% and also reduction of setup costs
/// Virtually Eliminates Flashbacks ... (eliminates the honeycomb table) and costly material waste through the innovative cone-shaped pin design that defuses the laser beam to eliminate tick marks
/// Modular Design ... Unique rack and cone-shaped pin design utilizing 1” centers gives you the  flexibility of rotating V-Blocks, Risers and special fixtures vertically or horizontally to maximize productions and setups

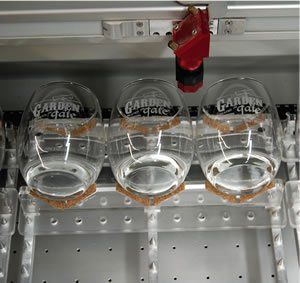

///V-Block Technology™...V-Blocks automatically center and secure the objects vertically or horizontally, and are adjustable to level the object to the laser beam
///Custom Templates ...Process odd and irregular shaped parts horizontally and vertically with the use of custom fixtures providing worry-free leveling and placement, for optimum high-speed production. Contact us today for a free quote
///Precision-Manufactured High-Grade Aluminum & Powder Coated Frame
Low-contact, cone-shaped aluminum pin design virtually eliminates flashbacks and the damage they cause to valuable materials.

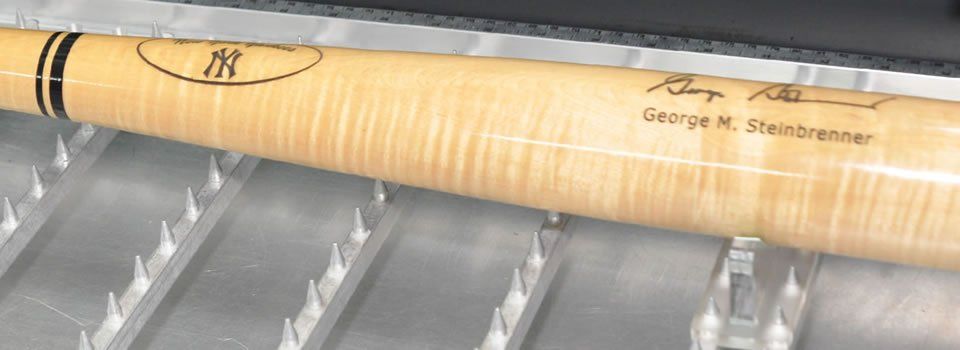

V-blocks automatically center, secure, and level the objects, dramatically increasing production while eliminating the need for a rotary attachment.

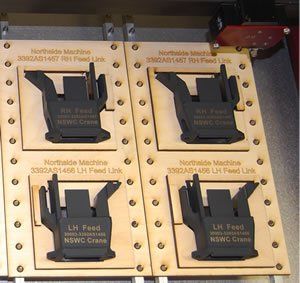

Process irregular-shaped parts with Rack Star™ custom templates which provide the leveling and accurate placement needed for high-speed production.
